Check valves VPCV series, suitable for steam and other fluids in general.

Check valves with started flow, equipped with harmonic steel thrust spring for operation also in vertical position, flanged connections according to EN1092-2 standard.
– Suitable for steam, diathermic oil, superheated water and other fluids
– Compliance according to the PED 2014/68/EU directive
– Certified according to the 94/9/EC ATEX directive (on request)

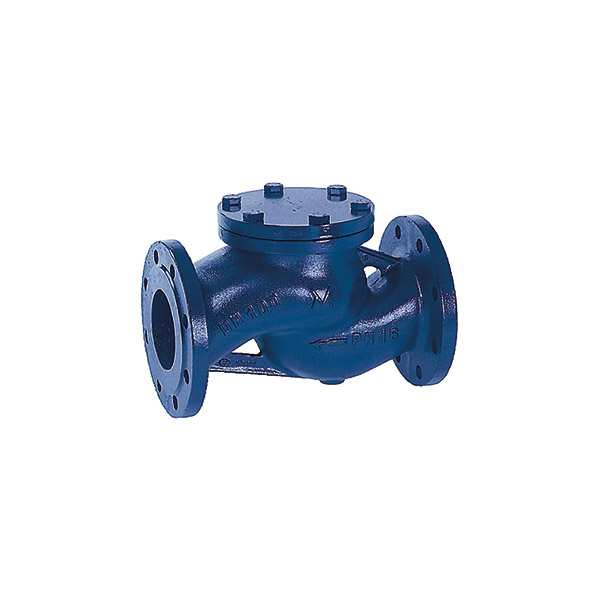

Figure F55 flow started in grey cast iron EN-GJL-250 flanged connections according to EN1092-2 PN 16
– limits -10° _ +300°c
Figure F56 started flow in spheroidal cast iron EN-GJS-400 flanged connections according to EN1092-2 PN 16
– limits -10° _ +350°c
Figure F57 started flow in spheroidal cast iron EN-GJS-400 flanged connections according to EN1092-2 PN 25
– limits -10° _ +350°c
Figure F335 flow started in carbon steel EN1. 0619 flanged connections according to EN1092-2 PN 40
– limits -10° _ +400°c
